49 Inch Digital Display

Product Details

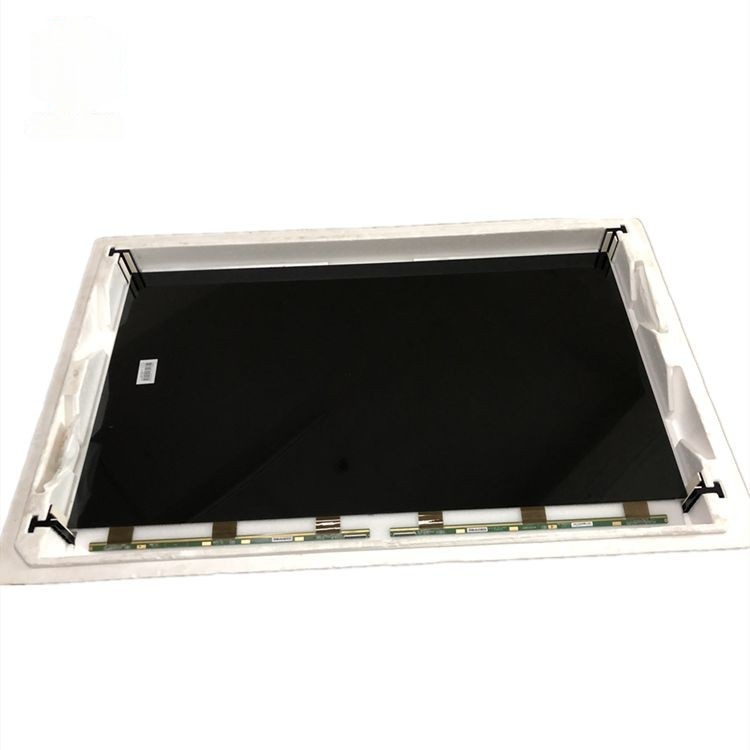

49 inch digital display BOE HV490FHB-N80

Product Advantages

We supply 49 inch digital display 10 years experience TV LCD Panle supplier, support different panle brand, such as BOE, SAMSUNG, LG, CSOT, AUO, PANDA, INNOLUX, CHOT, HKC Lcd Open Cell for tv assembling or replacement.

Our Client

Specification

MOQ: 20 pieces,support mixed

Panel Brand	BOE	Model	HV490FHB-N80
Diagonal Size	49 inch	Frequency	60Hz
Pixel Format	1920(RGB)¡Á1080 [FHD] 45PPI	Interface Type	LVDS (2 ch, 8-bit) , 51 pins Connector
Active Area(mm)	1073.78(H)¡Á604(V) mm	Input Voltage	12.0V (Typ.)
Configuration	RGB Vertical Stripe	NTSC Ratio	73%
Dot Pitch	0.18642¡Á0.55926 mm (H¡ÁV)	Adobe RGB	76% coverage
Pixel Pitch	0.55926¡Á0.55926 mm (H¡ÁV) [45PPI]	Rec.2020	54% coverage
Form Factor	Flat Rectangle	sRGB	95% coverage
Orientation	Landscape type	DCI-P3	76% coverage
Aspect Ratio	16:9 (H:V)	Treatment	Antiglare (Haze 1%), Hard coating (2H)
Support Color	16.7M 73% NTSC	Contrast Ratio	1200:1 (Typ.) (TM)
Weight	1.97Kgs (Typ.)	Transmittance	6.3% (Typ.)(with Polarizer)
Amount	15 pcs / box	Carton Size (L¡ÁW¡ÁH)	1230¡Á880¡Á130 mm (L¡ÁW¡ÁH)

Packing

BOE provides the standard shipping container for customers, unless customer specifies their packing information. The standard packing method and Barcode information are shown in below.

1. Put EPE pad and panels into the box, 15pcs panels per box

2. Put the box on the pallet,7ea boxes per pallet

3. Put one cover on the top of boxes, pack with paper corner & belt

4. Use wrapping film to bind up them
