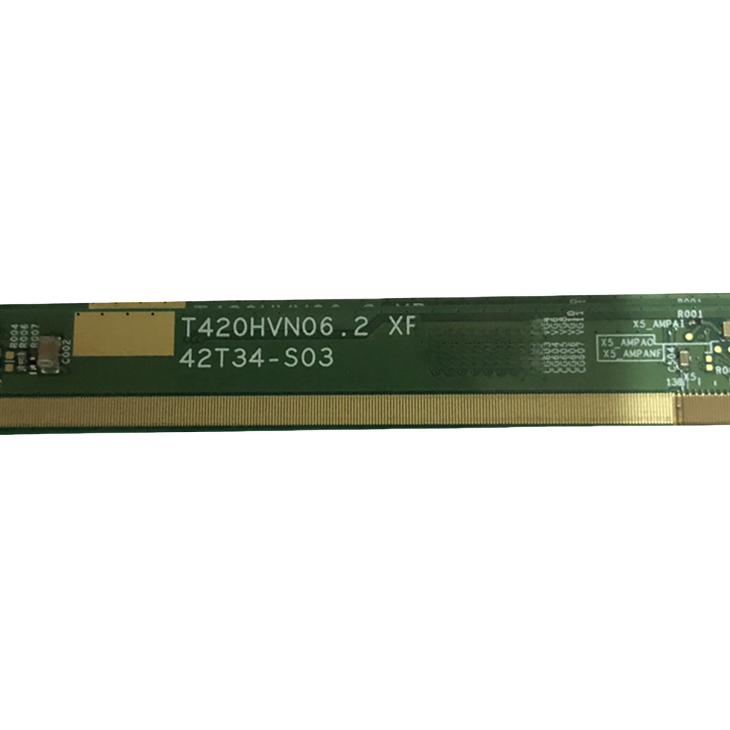

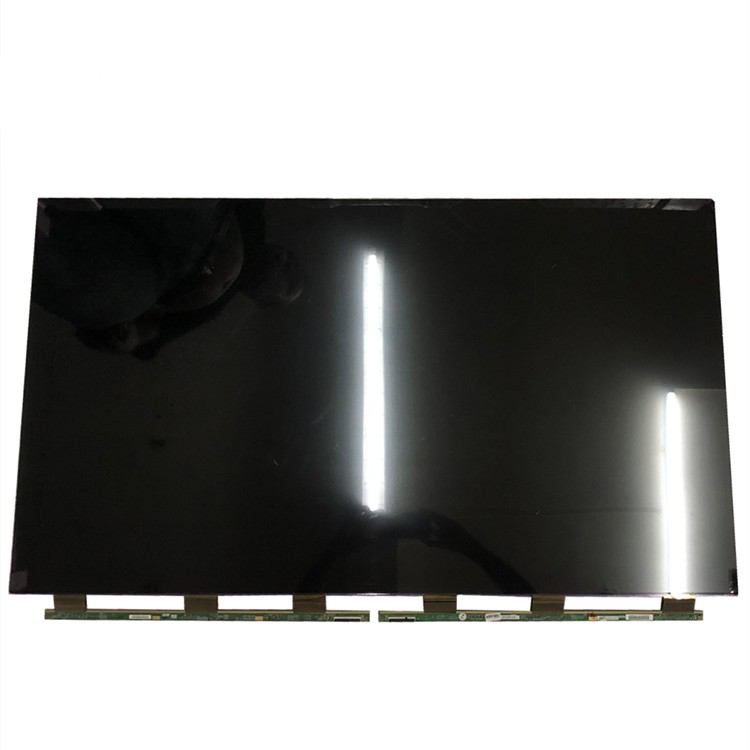

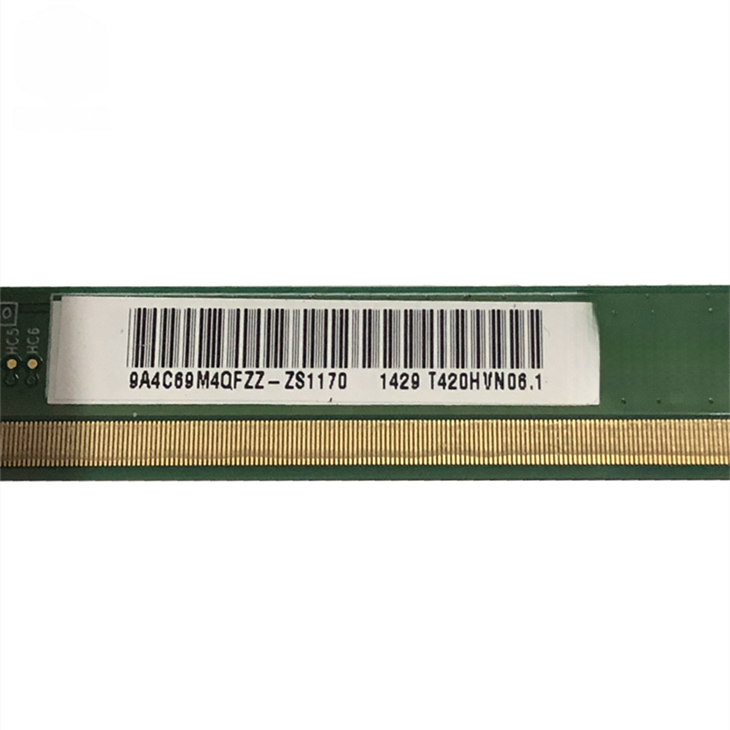

AUO Display 2k Lcd Display 42 Inch T420HVN06.2

Panel Brand

AUO

Model

T420HVN06.1

Diagonal Size

42″

Frequency

60Hz

Pixel Format

1920(RGB)¡Á1080, FHD, 52PPI

Interface Type

LVDS (2 ch, 8-bit) , 51 pins Connector

Active Area(mm)

930.24(W)¡Á523.26(H) mm

Power Supply

12.0V (Typ.)

Outline Size

946.24(W)¡Á540.06(H) ¡Á1.34(D) mm

Surface

Antiglare (Haze 2%), Hard coating (3H)

Glass Depth

0.50+0.50 mm

Contrast Ratio

3000:1 (Typ.) (TM)

Display Colors

16.7M 71% NTSC

Display Mode

AMVA3, Normally Black, Transmissive

Driver IC

COF Built-in 6 source chips

Response Time

6.5 (Typ.)(G to G)

Brightness

0 cd/m?

Transmissivity

5.8% (Typ.)(with Polarizer)

Amount

12 pcs / box

Size (L¡ÁW¡ÁH)

–
