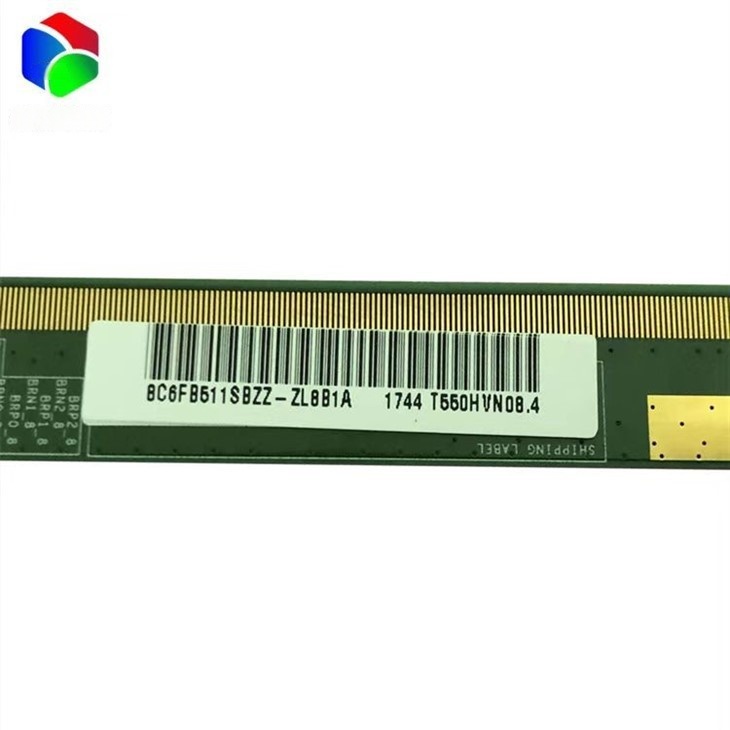

CHINA LCD PANEL OPEN CELL T550HVN08.4

Product Details

Product parameter:

MOQ: 20 pieces,support mixed

Panel Brand	AUO	Model	T550HVN08.4
Diagonal Size	55″	Frequency	60Hz
Resolution	1920(RGB)¡Á1080 (FHD) 40PPI	Signal Interface	LVDS (2 ch, 8-bit) , 51 pins Connector
Active Area(mm)	1209.6 ¡Á 680.4 (H¡ÁV)	Input Voltage	12.0V (Typ.)
Outline(mm)	1219.6 ¡Á 692.9 ¡Á 1.4 (H¡ÁV¡ÁD)	Screen Type	CELL , a-Si TFT-LCD
Glass Thickness	0.50+0.50 mm	Arrangement	RGB Vertical Stripe
Color Depth	16.7M 70% NTSC	Treatment	Antiglare (Haze 2%), Hard coating (3H)
Mass	2.53Kgs (Typ.)	Contrast Ratio	3500 : 1 (Typ.) (TM)
Driver IC list	Built-in COF 8 source chips	Response	8 (Typ.)(G to G) ms
Quantity	10 pcs / box	Transmissivity	6.5% (Typ.)(with Polarizer)
NTSC Ratio	70%	sRGB	87% coverage
Adobe RGB	72% coverage	DCI-P3	71% coverage
Rec.2020	52% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Environment	Operating Temp.: 0 ~ 50 ¡ãC ; Storage Temp.: -20 ~ 60 ¡ãC

OPEN CELL APPLICATION SCENARIO:

111

Packaging & Delivery:

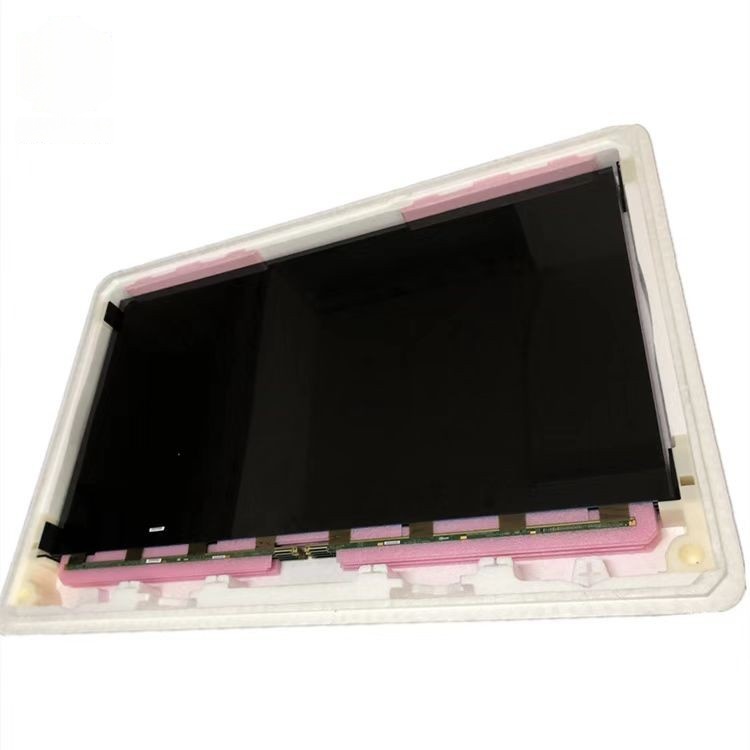

Packaging Details

1. Put EPE pad and panels into the box, 15pcs panels per box

2. Put the box on the pallet,a cover on the top of the boxes

3. Use wrapping film to bind up them

4. Finally, use a strong wooden box or wooden frame to protect

111

Delivery

1. Order will be shipped within 1-3 days after confirmed the payment.

2. Major express partners: DHL,UPS,EMS,Fedex

3. We are not responsible for any import fees,remote area charges,taxes or other Customs fees.

111

LCD screens explained

A liquid crystal display (LCD) has liquid crystal material sandwiched between two sheets of glass. Without any voltage applied between transparent electrodes, liquid crystal molecules are aligned in parallel with the glass surface. When voltage is applied, they change their direction and they turn vertical to the glass surface. They vary in optical characteristics, depending on their orientation. Therefore, the quantity of light transmission can be controlled by combining the motion of liquid crystal molecules and the direction of polarization of two polarizing plates attached to the both outer sides of the glass sheets. LCDs utilize these characteristics to display images.

Working principle of an LCD

Open Cell is a part of an LCD panel without a backlight. An Open Cell has multiple layers. Some of its layers are External Frame, Polarizing Film, LCD Module, Optical Film, Light Guide Path, Backlight, External Frame. Below is an image for the same

111

Guangzhou Red Green Blue Electronic Technology Co., Ltd.

Cooperative brand:

FAQ:

Q: Why choose RGB TV SCREEN?

A: We provide High qualityTV panels: All the parts from RGB are tested ony by one before shipping, 100% working. Reasonable price: All the quotations base on prompt market price, large order quantity and rapid response insure RGB TV SCREEN can get best support and firsthand information from upstream suppliers. Various Payment Terms: T/T, PayPal, West Union, Escrow, L/C, Alipay all are acceptable.

Q: Why choose GUAGNZHOU RGB TV PANELS?

A: We provide High quality BOE TV panels, Properly & Safety Packing, Timely & Economical Delivery, Long Term Warranty & Speedy Corresponding.

111
