Product Details

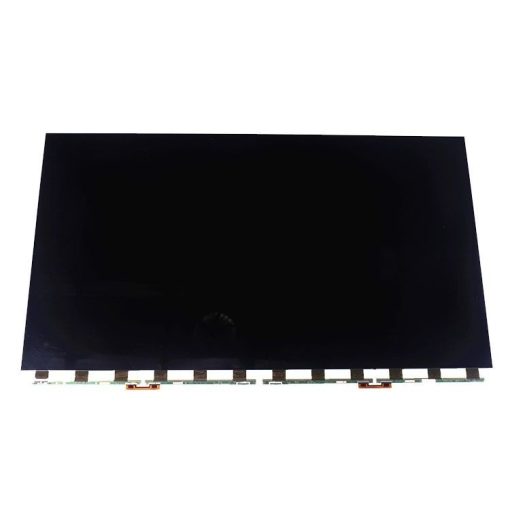

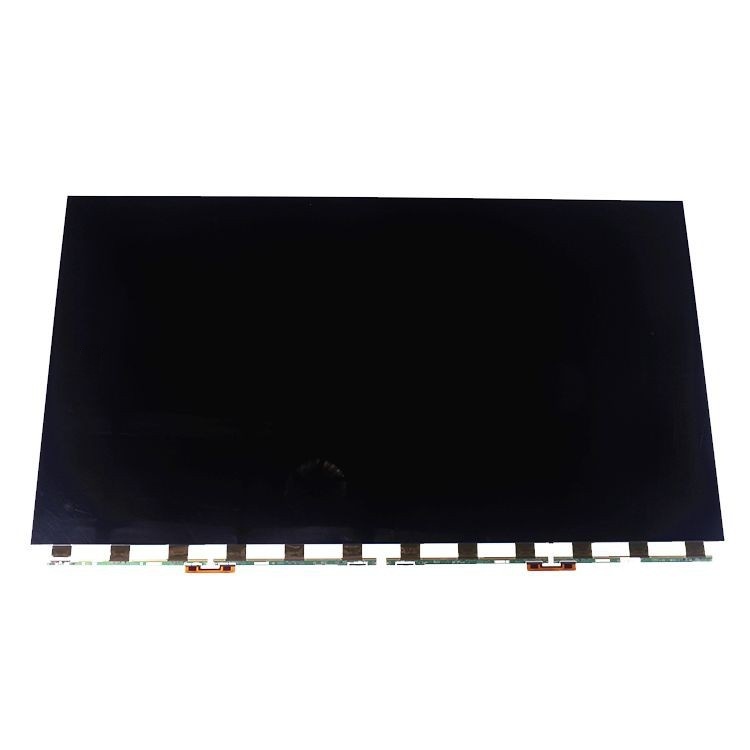

BOE tft lcd screen left power HV650QUB-F90

Introduction

TFT lcd screen HV650QUB-F90 is a color active matrix TFT LCD open cell using amorphous silicon TFT’s (Thin Film Transistors) as an active switching devices. This module has a 64.5 inch diagonally measured active area with UHD resolutions (3840 horizontal by 2160 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 1.07G colors. The TFT-LCD panel used for lcd screen left power module is adapted for a low reflection and higher color type.

Cooperative Brand

image001(001)

Product Specification

MOQ: 20 pieces,support mixed

Panel Brand	BOE	Model	HV650QUB-F90
Diagonal Size	65 inch	Frequency	60Hz
Pixel Format	3840(RGB)¡Á2160 [UHD] 68PPI	Signal Interface	V-by-One 8 lane , 51 pins Connector
Active Area (mm)	1428.48(H)¡Á803.52(V) mm	Input Voltage	12.0V (Typ.)
Outline Dimension	1440.48(H) ¡Á 817.02(V)	Treatment	Antiglare (Haze 1%), Hard coating (3H)
Support Color	1.07B 99% sRGB	Contrast Ratio	1200:1 (Typ.) (TM)
Weight	3.50Kgs (Typ.)	Transmittance	5.1% (Typ.)(with Polarizer)
D-IC Detail	COF Built-in 12 source chips	Use For	Ultra High Definition TV(UHD TV)
Form Factor	Flat Rectangle	Dot Pitch	0.124¡Á0.372 mm (H¡ÁV)
Orientation	Landscape type	Pixel Pitch	0.372¡Á0.372 mm (H¡ÁV) [68PPI]
Amount	11 pcs / box	Carton Size (L¡ÁW¡ÁH)	1676¡Á1090¡Á128 mm

Products Serial Number

Packing

¡ñ Put 1Pcs EPE spacer in the box, then put 1Pcs Panel into the box

¡ñ Put total 11pcs O/C and 12pcs EPE spacer into the box

¡ñ Put the box on the pallet,7ea boxes and 1ea Cover per pallet

¡ñ Put one paper cover on the top, Pack with 4 Package belts. (7ea boxes per pallet)

Company Information

Established in the year 2011 at guangzhou, china, we “RGB TV SCREEN” are engaged in Wholesale Trader an excellent quality range of LED TV PANEL, Samsung PANEL, BOE PANEL, LG PANEL, AUO PANEL, CSOT PANEL, etc. We are a Sole Proprietorship firm and we source products from the reliable market vendors, which can be availed from us at reasonable prices.

image007(001)

Product Shipping

We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.

FAQ

Q: What is our main LCD panel Size

A: From 23.6inch-98inch with many brands for selection.

Q: Which payment form you can accept?

A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.

Q: Do you provide sample ? Is it free?

A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.

Q: What’s your panel after-sale service?

A: Our quality warranty period is 180 days. Any panel quality problem will be solved to customer satisfactions.
