Lg 32 Inch Led Tv Display Panel

Product Details

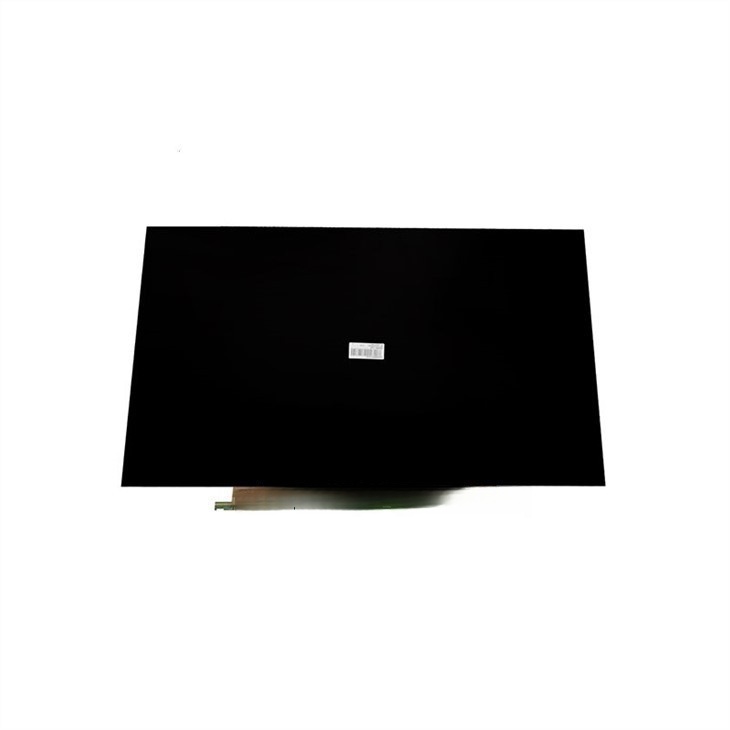

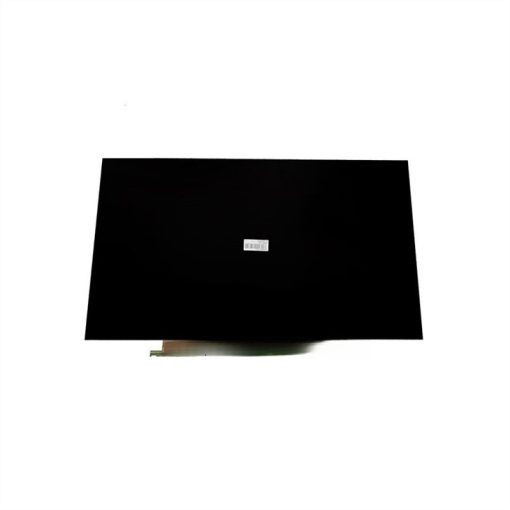

lg 32 inch led tv display panel LC320DXYSLA3 6870S-1578C

General Description

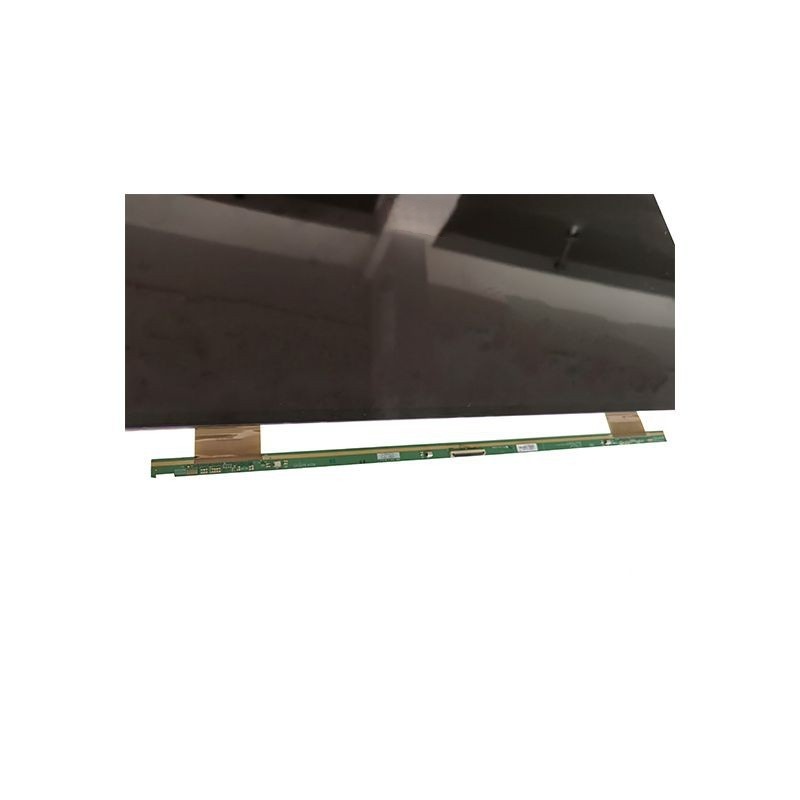

The LC320DXY is a Color Active Matrix Liquid Crystal Display with an integral the Source PCB and Gate implanted on lg 32 inch led tv display panel. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in the normally black mode.

It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut, high color depth and fast response time are important.

Product Specification

MOQ: 20 pieces,support mixed

Panel Brand	LG Display	Model	LC320DXY-SLA3
Diagonal Size	32.0 inch	Frequency	60Hz
Resolution	1366(RGB)¡Á768 (WXGA) 49PPI	Signal Interface	LVDS (1 ch, 8-bit) , 30 pins Connector
Active Area(mm)	697.685 ¡Á 392.256 (H¡ÁV)	Input Voltage	12.0V (Typ.)
Outline Size	715 ¡Á 411 ¡Á 1.2 (H¡ÁV¡ÁD)	Screen Type	CELL , a-Si TFT-LCD
Luminance	0 cd/m?	Arrangement	RGB Vertical Stripe
Viewing Angle	89/89/89/89 (Min.)(CR¡Ý10)	Treatment	Antiglare (Haze 3%), Hard coating (2H)
Color Depth	16.7M 70% NTSC	Contrast Ratio	1100 : 1 (Typ.) (TM)
Mass	860g (Typ.)	Response	8/10 (Typ.)(Tr/Td) ms
Driver IC list	Built-in COF 2 source chips	Work Mode	IPS, Normally Black, Transmissive
Backlight	No B/L	Transmissivity	6.32% (Typ.)(with Polarizer)

LC320DXY-SLA3 Application

1. All in one pc

2. Video wall

3. Television

4. Advertisement tv

5. Interactive whiteboard

Product Packing

a) Package quantity in one Pallet :306pcs

b) Pallet Size :1140 mm(L) X 990 mm(W) X 1210mm(H)

c) B/Ass’y Q’ty + PE Sheet / Box : 17 pcs + 18pcs

d) Pallet label

? Pallet Plywood ? Carton Plate Paper, SW ? PE Sheet PE ? Top Packing EPS ? Bottom Packing EPS ? Desiccant Power dry No. Description Material ? Tape OPP ? Band PP ? Label BOX, YUPO, 100X70 ? wrap LLDPE ? Angle Packing Paper, SW

Product Shipping

FAQ

Q: What is our main Lcd Led tv display panel

A: 23.6″, 32″, 40″, 42″, 43″, 48″, 49″, 54.6″, 58″, 65″, 75″, 86″, 98″ led tv display panel.

Q: Why choose GUAGNZHOU RGB TV PANELS?

A: We provide High quality BOE TV panels, Properly & Safety Packing, Timely & Economical Delivery, Long Term Warranty & Speedy Corresponding.

Q: Are you trading company or manufacturer?

A: We are professional LCD OPEN CELL trading company and also professional tv manufacture. specialized in led tv and tv parts products. And we trade our products with our clients directly.

We are LCD open cell supplier from 18.5inch to 86inch and have 10years experience in this field.

please add me WECHAT or WHATSAPP : +8618684827762 , then i can answer u ASAP.

Q: What’s your Service

A: 1.Sample offer

2. Original New, High quality & Competitive price

3. Fast shipping

4. Excellent after-sales service
