Description

Product Details

Samsung tv lcd panel LSF650FJ11-L09 16Y_10VU65SFL4LV0.0

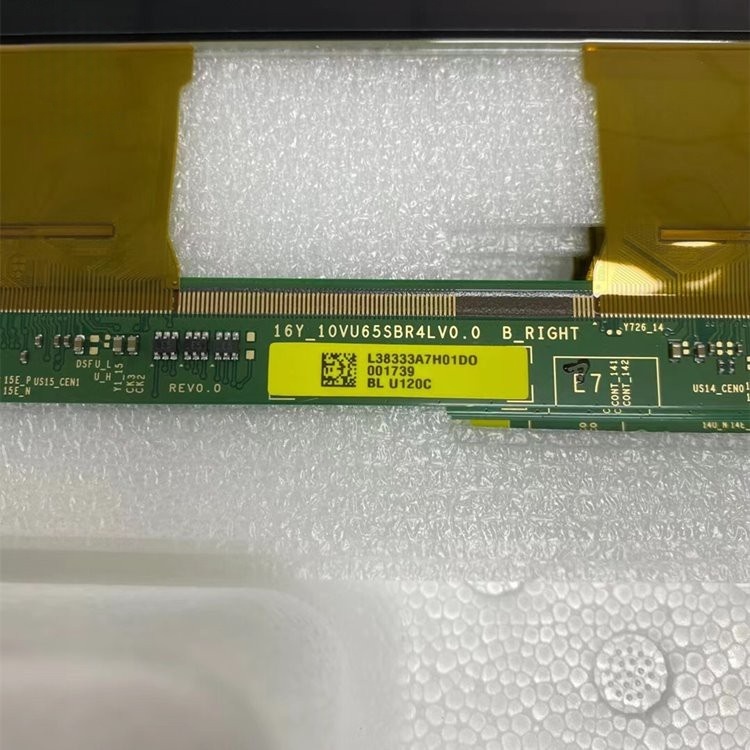

PCB Model: 16Y_10VU65SFL4LV0.0

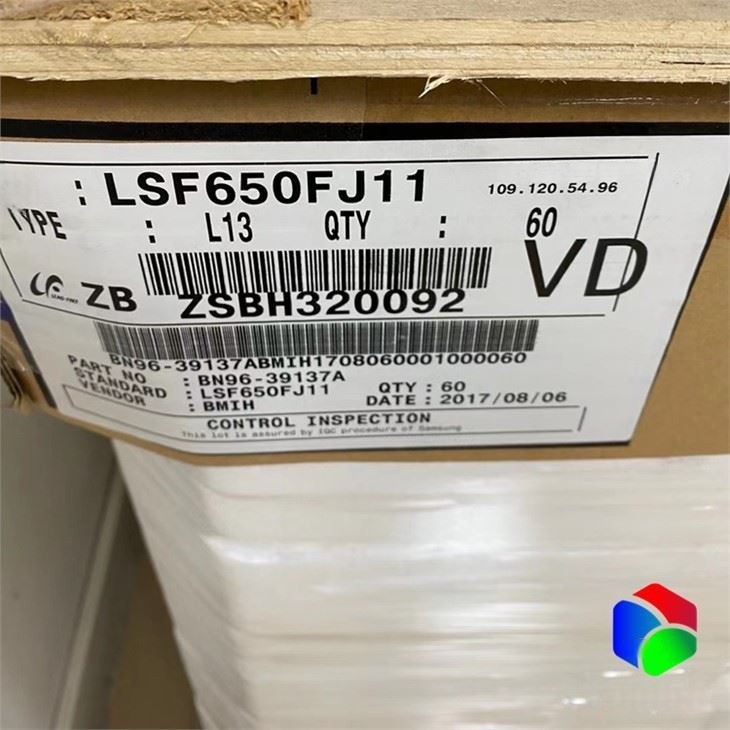

Stick Model: LSF650FJ11-L09

Product Specification

MOQ: 20 pieces,support mixed

Panel Brand	SAMSUNG	Model	LSC650FJ11
Diagonal Size	65″	Frequency	60Hz
Resolution	3840(RGB)¡Á2160, UHD, 68PPI	Signal Interface	V-by-One 8 lane , 51 pins Connector
Active Area(mm)	1428.48(W)¡Á803.52(H) mm	Input Voltage	12.0V (Typ.)
Outline Size	1438.48(W)¡Á814.37(H) ¡Á1.3(D) mm	Surface	Glare (Haze 0%), Hard coating (2H)
Glass Depth	0.40+0.50 mm	Contrast Ratio	6000:1 (Typ.) (TM)
Display Colors	1.07B 100% sRGB	Response Time	6 (Typ.)(G to G)
Weight	3.20Kgs (Typ.)	Transmissivity	5.3% (Typ.)(with Polarizer)
Driver IC	COF Built-in 16 source chips	Support Color	1.07B (10-bit)
Chromaticity	Wx:0.280; Wy:0.290	Color Temperature	9969K
Lamp Type	No B/L	Exchange	–

Product Process

Company Information

Guarantee

1. Strictly test one by one to make sure all the goods best quality, Each item has been checked and in good condition before shipping

2. Warranty is 90 days.

Refund&Return

1. If the item is defective, pls notify us within 3 days after receiving.

2. Items should be returned with original package if possible.

Product Packing

1. Packing Form

Corrugated Cardboard box as shock absorber.

2. Packing Method

Put 1Pcs EPE Pad in the box, then put 1Pcs samsung tv lcd panel into the box.
