Sharp Led Tv Screen Replacement

Product Details

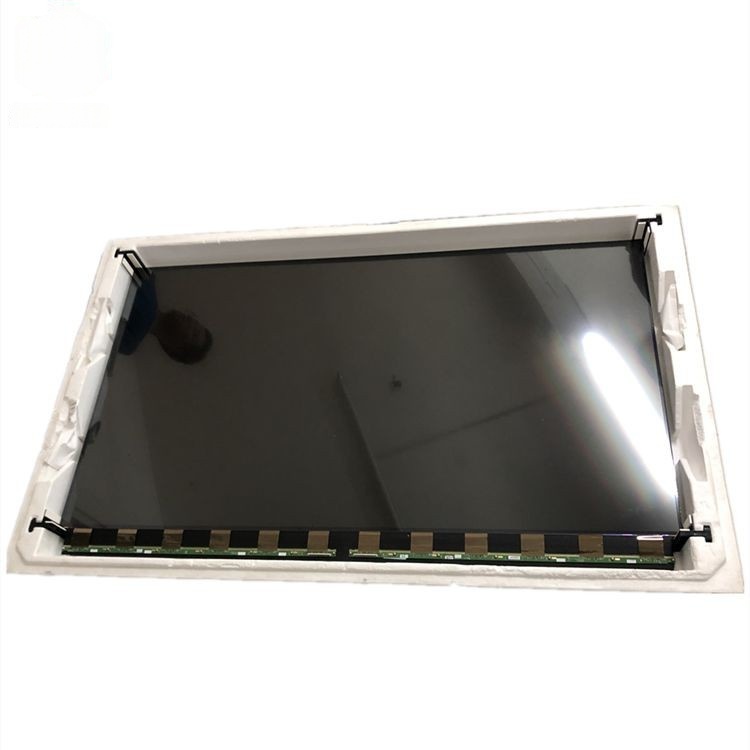

55 inch sharp led tv screen replacement LC550EQL-SJA1 6870S-2172B

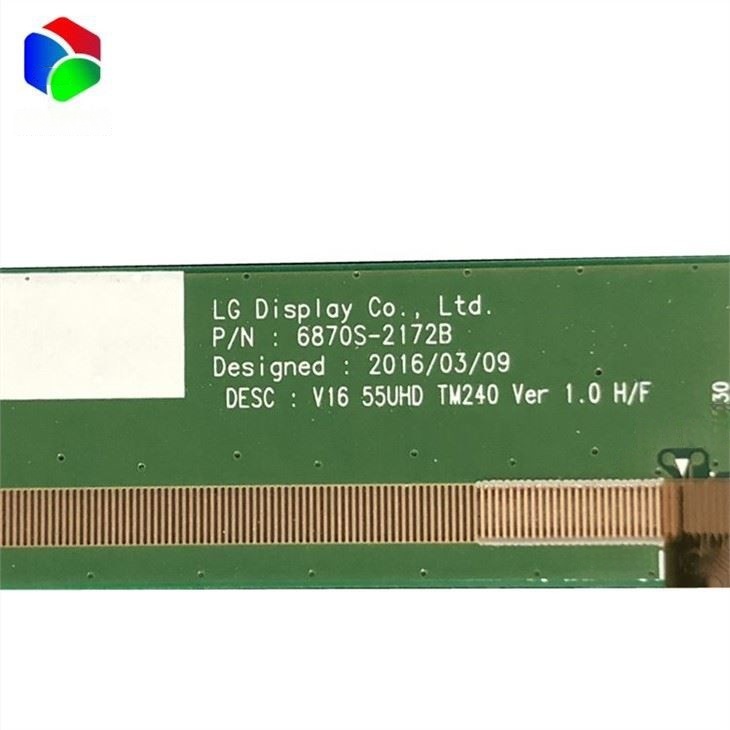

PCB Model:P/N 6870S-2172B

Stick Model: LC550EQL-SJA1 / LC550EQL(SJ)(A1)

Product Advantages

We supply led tv screen 23.6inch-98inch . 10 years experience TV LCD Panle supplier, support different panle brand, such as BOE, SAMSUNG, LG, CSOT, AUO, PANDA, INNOLUX, CHOT, HKC led tv screen for sharp tv assembling or replacement.

Product Structure

Extemal frame, polarizing film, lcd module, polarizimg film, optical film, light guide path, backlight, extemal frame

Product Description

MOQ: 20 pieces,support mixed

Panel Brand	LG Display	Model	LC550EQL-SJA1/6870S-2172B
Diagonal Size	55″	Frequency	120Hz
Resolution	3840(RGB)¡Á2160, UHD, 80PPI	Signal Interface	V-by-One 16 lane , 97 pins Connector
Active Area(mm)	1209.6(W)¡Á680.4(H) mm	Input Voltage	12.0V (Typ.)
Outline Size	1225.2(W)¡Á696.7(H) ¡Á1.3(D) mm	Surface	Antiglare (Haze 3%), Hard coating (2H)
Display Colors	1.07B 69% NTSC	Contrast Ratio	1400:1 (Typ.) (TM)
Weight	2.50/2.63Kgs (Typ./Max.)	Response Time	5 (Typ.)(G to G)
Driver IC	COF Built-in 12 source chips	Transmissivity	7.5% (Typ.)(with Polarizer)
NTSC Ratio	69%	sRGB	87% coverage
Adobe RGB	71% coverage	DCI-P3	71% coverage
Rec.2020	52% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Amount	135 pcs / box	Weight	1390¡Á890¡Á1090 mm
