Tv Screen Fix

Product Details

50 inch lg smart tv screen fix supply LC500DUJ-SGE2 6870S-1763B

PCB Model:P/N 6870S-1763B

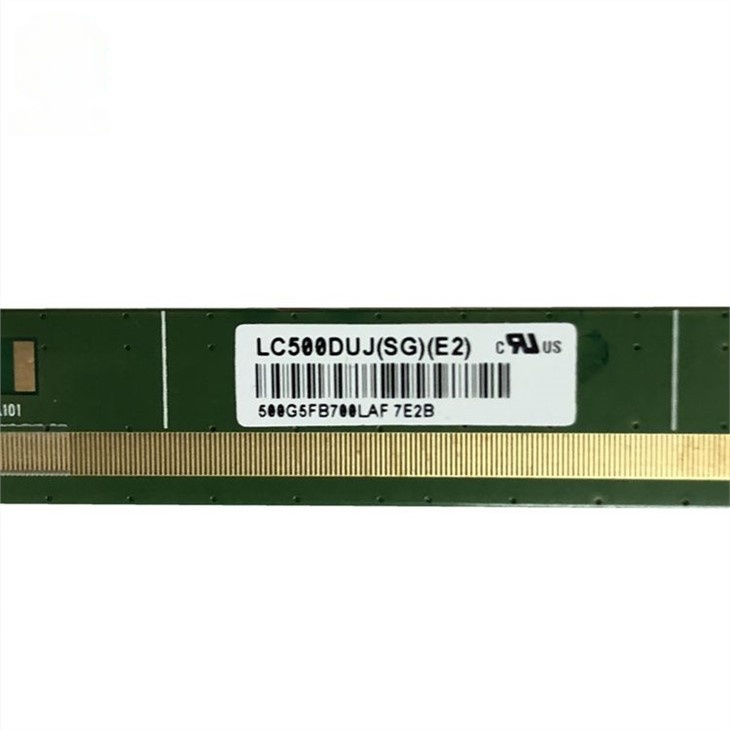

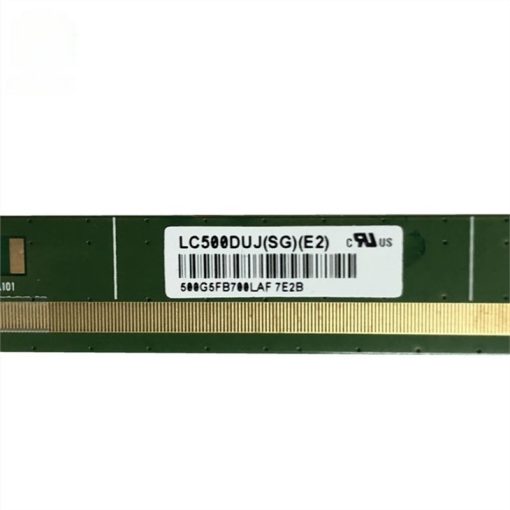

Stick Model: LC500DUJ-SGE2 / LC500DUJ(SG)(E2)

Cooperative brand

RGB, 10 years tv screen supplier. We cooperate with almost famous brand:LG, SAMSUNG, BOE, CSOT, AUO, HKC, PANDA DISPLAY.

Product Specification

MOQ: 20 pieces,support mixed

Panel Brand	LG Display	Model	LC500DUJ-SGE2/6870S-1763B
Diagonal Size	50 inch	Frequency	60Hz
Resolution	1920(RGB)¡Á1080 (FHD) 44PPI	Signal Interface	LVDS (2 ch, 8-bit) , 51 pins Connector
Active Area(mm)	1095.84 ¡Á 616.41 (H¡ÁV)	Input Voltage	12.0V (Typ.)
Outline Size	1110.5 ¡Á 633.9 ¡Á 1.4 (H¡ÁV¡ÁD)	Screen Type	CELL , a-Si TFT-LCD
Glass Thickness	0.50+0.50 mm	Treatment	Antiglare (Haze 1%), Hard coating (3H)
Color Depth	16.7M 72% NTSC	Contrast Ratio	1200 : 1 (Typ.) (TM)
Mass	2.00/2.20Kgs (Typ.Max.)	Response	6 (Typ.)(G to G) ms
Driver IC list	Built-in COF 8 source chips	Transmissivity	6.81% (Typ.)(with Polarizer)
Viewing Angle	89/89/89/89 (Min.)(CR¡Ý10)	Backlight	No B/L
Quantity	70 pcs / box	Weight	–
Box Size	1390¡Á890¡Á980 mm (L¡ÁW¡ÁH)

Product Process

Open Cell is a part of an LCD panel without a backlight. An Open Cell has multiple layers. Some of its layers are External Frame, Polarizing Film, LCD Module, Optical Film, Light Guide Path, Backlight, External Frame. Below is an image for the same.

Packing

1. Original pallet to wholesales customer or tv factory.

2.Wooden box to tv aftersales workshop (MOQ 1 BOX)

Delivery

1. Order will be shipped within 1-3 days after confirmed the payment.

2. Major express partners: DHL,UPS,EMS,Fedex

3. We are not responsible for any import fees,remote area charges,taxes or other Customs fees.

Payment

We accept Alipay, Paypal, T/T(Bank Transfer), Credit Card, Western Union, Moneygram, etc….If you have any problems of payment, please contact us freely.

Refund&Return

1. If the item is defective, pls notify us within 3 days after receiving.

2. Items should be returned with original package if possible.
